This little code is just for unroll a bunch of surfaces. The parameter include ordering by "bounding box size" or by spatial location, with or without labels.
if no srf or brep is selected, will show:
, if only one srf is selected will show:
, lol….
the core of the code is the “order by size” and the “smash” rhino command.

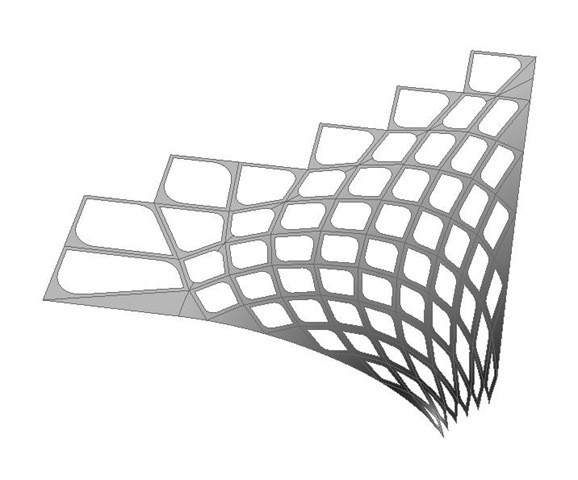

these are the samples:
without label with/without label

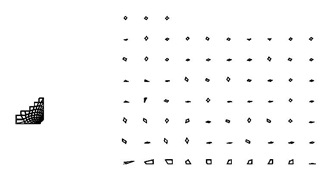

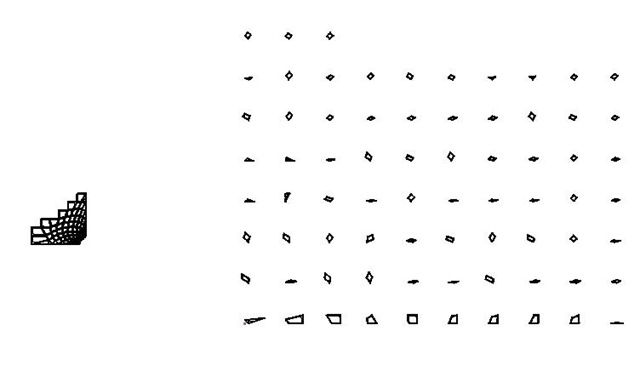

by spatial relation by size
Click to download plugin: drag to your rhino and you are all set.
Run it by typing command "xUnroll" or go to the menu "xTools".
__________________________________________________________
Option Explicit
'Script written by <xarch.blogspot.com>
'Script copyrighted by <xarch.blogspot.com>
'Script version Monday, January 12, 2009 4:33:17 PM
Call Main()
Sub main()
Dim breps: breps=rhino.getobjects("select Srfs or breps",,True,True)
If isnull(breps) Then Exit Sub
Dim spacingfactor:
spacingfactor=rhino.getreal("spacing factor?",2,0.001) 'x time biggest panel size
If isnull(spacingfactor) Then Exit Sub
Dim BestGuessSwitch
BestGuessSwitch=rhino.getstring("Order method, by spatical location?","Yes",array("Size"))
If isnull(BestGuessSwitch) Then Exit Sub
If BestGuessSwitch="Yes" Then BestGuessSwitch=1
If BestGuessSwitch="Size" Then BestGuessSwitch=2
'1=order by spatical location(exploded)
'2=order by size
Dim ShowTagSwitch
ShowTagSwitch=rhino.getstring("add Label?","No",array("Yes"))
If ShowTagSwitch="Yes" Then ShowTagSwitch=1
If ShowTagSwitch="No" Then ShowTagSwitch=0
Dim brep,n1,brepstemp()
n1=0
For Each brep In breps
If rhino.ObjectType(brep)=8 Or rhino.ObjectType(brep)=16 Then
ReDim Preserve brepstemp(n1)
brepstemp(n1)=brep
n1=n1+1
End If
Next
If n1=0 Then
rhino.MessageBox "No srf selected"
Exit Sub
End If
Call unrollsrfs(brepstemp,spacingfactor,BestGuessSwitch,ShowTagSwitch)
End Sub
Function unrollsrfs(ByVal breps,ByVal spacingfactor,ByVal BestGuessSwitch,ByVal ShowTagSwitch)
Dim n:n=ubound(breps)
If n<=0 Then
rhino.MessageBox "Need 2 or more srfs to run, you lazybone!"
Exit Function
End If
Dim allcenter:allcenter=rhino.Pointscale(rhino.PointAdd(rhino.BoundingBox(breps)(0),rhino.BoundingBox(breps)(6)),0.5)
Dim sortsize,spacing,center
sortsize=SortSrfBySize(breps)
spacing=sortsize(1)(0)
center=sortsize(2)
' testing
'rhino.AddTextDot "the biggest panel is "&spacing , sortsize(2)(0)
'rhino.AddTextDot "the smallest panel is "&sortsize(1)(n) , sortsize(2)(n)
Dim k,obj,arrobj,arrUnroll
k=-1
arrUnroll = Array()
If BestGuessSwitch=0 Then arrobj=breps
If BestGuessSwitch=1 Then arrobj=sortsize(0)
If BestGuessSwitch=2 Then arrobj=sortsize(0)
rhino.EnableRedraw False
For Each obj In arrobj
k = k + 1
If ShowTagSwitch=1 Then rhino.addtextdot k, center(k)
Call Rhino.UnselectAllObjects
Call Rhino.SelectObject(obj)
'Call Rhino.Command (CStr("_smash LinearDirection=Natural _Enter Explode=No Labels=No _Enter"), vbFalse)
Call Rhino.Command (CStr("_smash _Enter _Enter"), vbFalse)
ReDim Preserve arrUnroll(k)
arrUnroll(k) = Rhino.FirstObject
If BestGuessSwitch=2 Then
rhino.MoveObject arrUnroll(k),array(0,0,0),array((k Mod 10)*spacingfactor*spacing,(k\10)*spacingfactor*spacing,0)
If ShowTagSwitch=1 Then rhino.addtextdot k&"'", array((k Mod 10)*spacingfactor*spacing,(k\10)*spacingfactor*spacing,0)
End If
If BestGuessSwitch=1 Then
Dim vecMove:vecMove=rhino.vectorScale(rhino.VectorUnitize(_
rhino.vectorcreate(center(k),allcenter)),((rhino.distance(center(k),allcenter)+spacingfactor*spacing)*2))
rhino.MoveObject arrUnroll(k),array(0,0,0),array(vecMove(0),vecMove(1),0)
If ShowTagSwitch=1 Then rhino.addtextdot k&"'", array(vecMove(0),vecMove(1),0)
End If
Next
rhino.EnableRedraw True
End Function
Function SortSrfBySize (ByVal objs)
Dim n:n=ubound(objs)
Dim i,j,k,boxLong(),objtemp,boxcenter(),temp(2),boxLongTemp
For k=0 To n
ReDim Preserve boxLong(k)
boxLong(k)=rhino.distance(rhino.BoundingBox(objs(k))(0),rhino.BoundingBox(objs(k))(6))
Next
For i=0 To n-1
For j=0 To n-1
If j<n-1-i Then
If boxLong(j)<boxLong(j+1) Then
objtemp=objs(j)
objs(j)=objs(j+1)
objs(j+1)=objtemp
boxLongTemp=boxLong(j)
boxLong(j)=boxLong(j+1)
boxLong(j+1)=boxLongTemp
End If
End If
Next
Next
For k=0 To n
ReDim Preserve boxcenter(k)
boxcenter(k)=rhino.Pointscale(rhino.PointAdd(rhino.BoundingBox(objs(k))(0),rhino.BoundingBox(objs(K))(6)),0.5)
Next
temp(0)=objs
temp(1)=boxLong
temp(2)=boxcenter
SortSrfBySize=temp
'SortSrfBySize(0) are the sorted srfs ID
'SortSrfBySize(1) are the sorted size dimension - SortSrfBySize(1)(0) is the biggest srf diaganal size
'SortSrfBySize(2) are the array of the center points
End Function
